Home » Products » Photovoltaic Parts » 10A 1000V DC Solar Fuse and Solar Fuse Holder

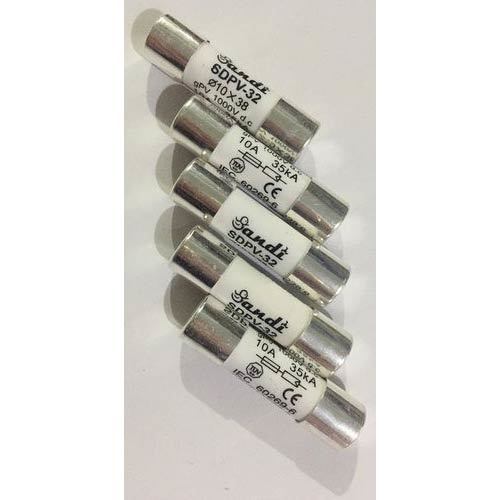

10A 1000V DC Solar Fuse and Solar Fuse Holder

10A 1000V DC Solar Fuse and Solar Fuse Holder
10A 1000V DC Solar Fuse and Solar Fuse Holder
Product Code : SDPV-32
Brand Name : SANDI
Product Specifications
  • Product Type
  • PV Fuse
  • Operating Temperature
  • -5~+40 Celsius (oC)
  • Working Temperature
  • -5~+40 Celsius (oC)
  • Input
  • maximum 1000VDC
  • Diameter
  • 38 Millimeter (mm)
  • Application
  • Solar Power Application
  • Dimension(L*W*H)
  • 38 × 38 × 27 Millimeter (mm)
Trade Information
  • Minimum Order Quantity
  • 1000
  • Unit of Measure
  • Piece/Pieces
  • FOB Port
  • Ningbo/Shanghai
  • Payment Terms
  • Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Paypal
  • Supply Ability
  • 100000 Per Day
  • Delivery Time
  • 3-7 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Dimensions per Unit: 38×38×27 CM Weight per Unit: 35Kg Units per Export Carton: 10000 Export Carton Dimensions L/W/H: 38×38×27CM Export Carton Weight: 40Kg
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Certifications
  • TUV,CE,UL
Product Description

10A 1000V DC Solar Fuse and Solar Fuse Holder




PV DC PVH-30 Fuse Holder

Pole

1P

According to

IEC 60947-3

Electrical Characteristics

Rated Working Voltage

Ue

1000V DC

Rated Current

In

30 A

Breaking Capacity

20KA

Max Power Dissipation

3W

Operating State/Fault Indication

Indicator Light OFF/Indicator Light ON

Connection and Installation

Wire

2.5mm2~25

Terminal Screws

M5

Torque

Nm

2.5

Degree of Protection

IP20

Installation Environment

Fuse Size

10x38 mm

Operating Temperature Range

TU

-30℃~+70℃

For Mounting On

TH35-7.5/DIN35

Pollution Degree

3

Relative Humidity

+20 ℃≤ 95%,+40℃≤50%

Weight

0.07kg Per pole

Installation Class

Ⅲ

1000V 10x38 ceramic fuse details

1. Superior cycling withstand
 PV fuses are tested to withstand cycling conditions associated with solar panel system operation and environmental influences.

2. 1000Vdc capacity
PV fuses are designed with a maximum 1000Vdc operating voltage based on typical solar panel systems with L/R of 1ms and below.

3. Globally accepted 10x38mm dimension
All PV fuse amp ratings are available with standard ferrule, bolt and versatile PCB mount.

4. Operating conditions:

1. Ambient air temperature: no more than 40C' and no less than -5C'
2. Altitudes: under 2Km
3. Atmospheric conditions: relative humidity no more than 50% when the maximum temperature is 40C'
4.Voltage: the maximum voltage of system no more than 110% of the rated voltage of the fuse.

5. Specifications:
Current ratings: 100 mA - 250 A
Sizes and voltage ratings:

5 x 20 mm: AC 250 V
6.35 x 32 mm: AC 500 Ã¢â‚¬â€œ 1000 V
10 x 38 mm: AC 600 Ã¢â‚¬â€œ 1000 V
14 x 51 mm: AC 500/600V Ã¢â‚¬â€œ 690/700 V
22 x 58 mm: AC 500/600 V Ã¢â‚¬â€œ 690/700 V
27 x 60 mm: AC DC 660 V Ã¢â‚¬â€œ 1000 V
