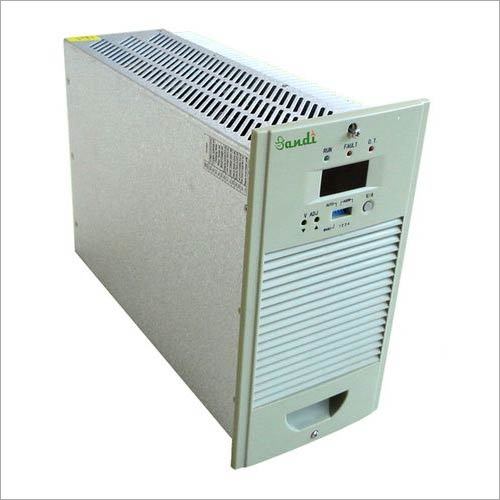

380VAC to charge 192VDC/220VDC/240VDC Battery Charger 5A/10A/20A/30A/40A

380VAC to charge 192VDC/220VDC/240VDC Battery Charger 5A/10A/20A/30A/40A
380VAC to charge 192VDC/220VDC/240VDC Battery Charger 5A/10A/20A/30A/40A
Product Code : 230D20ZZ-3
Brand Name : SANDI
Product Description
Product Description

      Three Phase 380VAC Input AC/DC Battery Charger -

  • A variety of current output optional, 5A 10A 20A 30A 40A
  • Digital display panel
  • Indication light
  • Fault display
  • Communication function
  • Multiple protections including over/under voltage, current limiting, short-circuit, parallel protection, over-temperature protection.
  •

    Main features of the system -


  • Modular design, N+1 backup,smooth expansion
  • Perfect monitoring function, high intelligent
  • Main monitor items: turn on/off, output voltage regulation, output current limit set, automatic battery management
  • Automatic Battery management and maintaining: real-time monitoring of battery pack terminal voltage, charge/discharge current, automatic even and float charging & regular even charging
  • Automatic temperature compensation
  • Hot plug, easy to replace and safe
  •

    Main features of the module -

  • Modular design, N+1 pc(s) backup;
  • The friendly man-machine interface. LED screen
  • RS-485 communication interface, achieves 4 remote control function
  • High efficiency, up to 95%-96%;
  • Light weight, Small size
  • After the full bridge rectifying circuit rectifies 3-phase AC to DC, then adjusted by reactive PFC,   power factor>0.94;
  • Unequal current ratio of parallel connection<+/-3%, can ensure twenty modules work well by parallel connection.
  • Function against reverse connection
  • LED digital screen
  •

    Main functions -

  • Output overvoltage protection
  • Output current limiting protect
  • Output short-circuit protection
  • Module parallel protection
  • Over-temperature protection
  • Output over-current protection
  •

    Technical Parameter -

Module Code

230D05ZZ-3

230D07ZZ-3

230D10ZZ-3

230D20ZZ-3

230D20NZ-3

230D30NZ-3

230D40NZ-3

rated output current(A)

5

10

10

20

20

30

40

power(KW)

1.5

2.1

3

6

6

9

12

weight(kg)

5.2

9

9

16

10.5

19

19

cooling type

natural cooling

fan cooling

Internal radiator temperature rise

≤30℃

≤20℃

range of input voltage

AC(VAC)

min

304

Typical value

380

max

456

range of the output

voltage(VDC)

min

190

Typical value

220

max

300

Voltage Stabilizing accuracy

±0.5%

Current Stabilizing accuracy

±1%

PFC

≥0.93

Efficiency

≥95%

noise(dB)

<50

Storage temperature(℃)

min

-40

Typical value

25

max

60

working temperature(℃)

min

-10

Typical value

25

max

40

Unbalance rate of load sharing

≤±3%

Soft start time(s)

3~8

Ripple coefficient

≤0.2%

Load grade

Continuous working with Grade I(100%) rating output current

Automatic current limiting

The output current does not increase infinitely. When output current is over

threshold, there will be limited constant current output.  The maximum output

current of is limited to 105% of the rated output current.

Output overvoltage protection

No output, threshold (320±5VDC), self recoverable

output short circuit protection

When short circuit, the module will protect itself from broken. Self recoverable



 Packaging & Shipping

  • Packing: SANDI standard export honeycomb carton packing suitable for shipment.
  • Shipping: By sea or by air or by express(DHL,Fedex,EMS and others) optional by customer.
  • Price Term: FOB Ningbo/Shanghai or CIF port name or CPT specified address



Our Services

  • Warranty time: 1 year from the date of purchase. (except man-made damage, if there is a quality problem, Non-human damage in the 1 year warranty, we repair free of charge). Also supply technology support all the time.



OEM Service

  • Accept OEM


Certifications

  • CE(EMC&LVD), SAA(AS4777&AS3100), G83, G59, ISO9001 certifications
