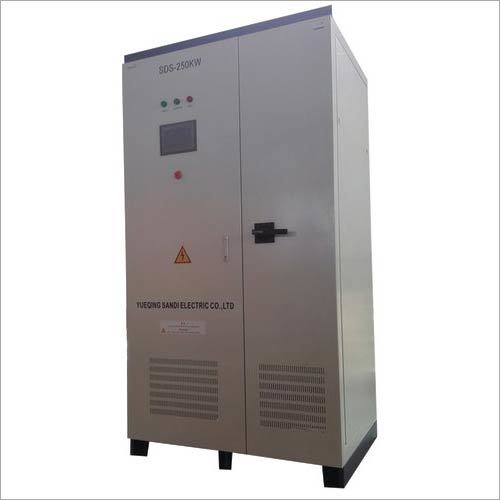

Inverter with VDE ARN 4105 and INMETRO

Inverter with VDE ARN 4105 and INMETRO
Inverter with VDE ARN 4105 and INMETRO
Product Code : SDS-250KW
Brand Name : SANDI
Product Specifications
  • Product Type
  • DC to AC Inverter
  • Standard
  • CE(EMC&LVD), SAA(AS4777&AS3100), G83, G59, VDE ARN 4105, UL1741, CSA22.2, ISO9001
  • Rated Voltage
  • 3 phase 220VAC or 380VAC Volt (V)
  • Frequency (MHz)
  • 50/60 Hertz (HZ)
  • Protection
  • anti-islanding protection
  • Usage
  • solar on grid system
  • Size
  • 1200*900*2060mm
  • Color
  • white and blue
  • Weight
  • 1100 Kilograms (kg)
  • Dimension(L*W*H)
  • 1200*900*2060mm Millimeter (mm)
Trade Information
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • FOB Port
  • Ningbo/Shanghai
  • Payment Terms
  • Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Paypal
  • Supply Ability
  • 1000pcs Per Month
  • Delivery Time
  • 20 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Packing of Inverter with VDE ARN 4105 and INMETRO is standard export honeycomb cartoon with pallet or wooden box or OEM
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Certifications
  • CE(EMC&LVD), SAA(AS4777&AS3100), G83, G59, VDE ARN 4105, UL1741, CSA22.2, ISO9001
Product Description

Inverter With VDE ARN 4105 and INMETRO

We are a professional manufacture and exporter for 1KW-500KW solar on grid inverter more than 10 years, approved by VDE ARN 4105, CE, SAA, our Inverter With VDE ARN 4105 and INMETRO with MPPT high efficiency, reliable quality, stable performance, long service life and high cost performance, very popular in Brazil, South America, Europe, USA, Australia, Philippines, Southeast Asia and so these countries.

Features:

  • Longer service life
  • Easy installation
  • User-friendly interface
  • Robust construction

Features:

  • Wide DC input voltage range
  • DSP controller
  • High efficiency by using advanced IGBT and IPM
  • MPPT(Maximum power point tracking) technology
  • Transformer, High efficiency
  • In accordance with international standards
  • Quick and easy installation
  • Operation parameters can be adjusted via LCD and keys
  • The perfect protection function
  • Designed to suitable for critical grid environment

Technical specification

Model

SDS-250KW

Isolation

Low frequency transformer isolation

Maximum DC input power

275kwp

Maximum DC input voltage

850vda

Maximum power point tracking(MPPT)range@

optimum operating point voltage

450vda~800vda@595vda

Recommended number of PV module voltage@string

35v around @ 17 string

Connection panels

Wiring Terminals

Maximum input current

611A

Rated AC output power

250kw

Maximum AC output power

275kwp

Current harmonics THDi

below 3%(Rated power)

Power Factor

above 0.99

Maximum efficiency

96.5%

European efficiency

95.2%

Allowed Grid Voltage Range

310vda~450vda(rated 380VAC)

Allowed Grid Frequency Range

47.5hz~51.5hz / 57.5hz~61.5hz

Power Consumption at Night

below 100w

Automatically put into operation conditions

DC input and power to meet the requirements, the inverter automatically run

Automatic restart after power failure time

5min(Time is adjustable)

Protection

Reverse polarity protection, short circuit protection, island effect, thermal protection, overload protection, etc.

Communication Interface

RS485/RS232/GPRS/ Ethernet

Operating Temperature

-25°C~+55°C

Relative Humidity

0~95%,Non-condensing

Altitude

≤ 2000 m (over 2000 m with derating required)

Cooling method

Forced air cooling

Noise

≤60db

Protection class

IP20(Indoor)

W × D × H(mm)

1200*900*2260

Weight(kg)

1100
