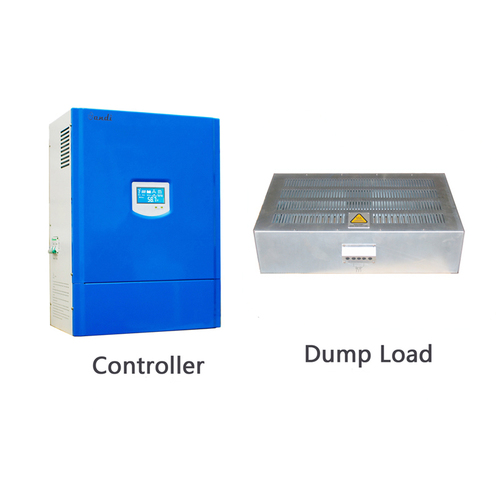

Wind Solar Hybrid Charge Controller

Wind Solar Hybrid Charge Controller
Wind Solar Hybrid Charge Controller
Product Code : SWS-13KW
Brand Name : Sandi
Product Description

Our innovative approach towards efficient utilization of natural sources of energy makes us a leading manufacturer, exporter and supplier of Wind Solar Hybrid Charge Controller. This charge controller is ideal to be installed for trouble free regulation of amount of electric current for prevention against short circuit or any other mishap. This wind solar hybrid charge controller is manufactured using quality examined components under stern surveillance of deft team members. Our clients can purchase this Wind Solar Hybrid Charge Controller at reasonable prices.

Features:

  • Simple to install
  • Robust design
  • Rust and moisture proof
  • Compact size

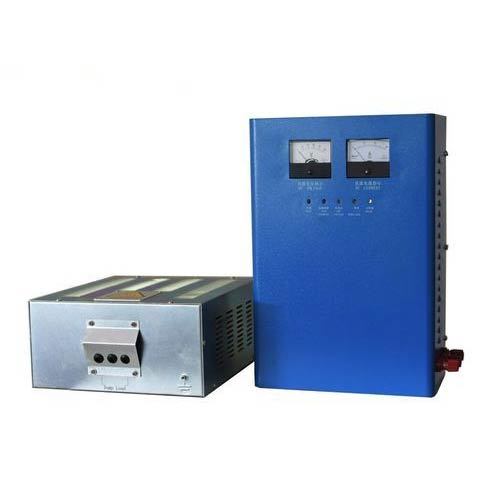

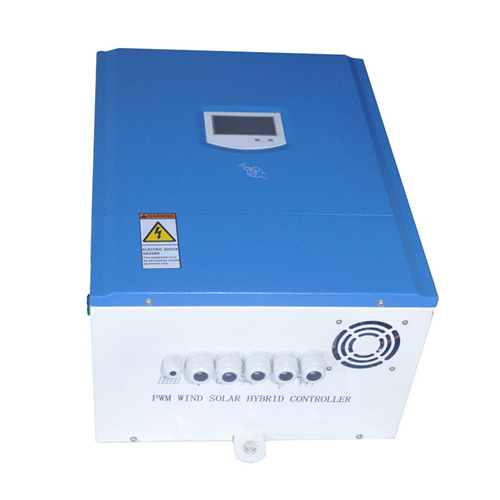

 Wind Solar Hybrid Controller

Fostered with immense technical expertise, we are engaged in offering our clients Wind Solar Hybrid Controller that is available in various technical specifications. It is widely used in various industries for controlling the solar equipment. In order to design the offered product, our professionals use high quality parts and latest technology. Offered Wind Solar Hybrid Controller is highly admired for its robust designs, smooth operation, low power consumption and minimum maintenance.

  • Integrated with the large LCD or LED display screen.
  • Accurately indicate the working ability of the solar panel, battery and wind turbine (Like current, voltage and power)
  • Two sets of control systems encompassing three-phase dump load & PWM constant voltage system.
  • PWM constant voltage-control system is featured in 120% of the power of the wind turbine.
  • If PWM's capacity exceeds, the three-phase dump load system will automatically actuate for making sure of safe functioning of the complete wind turbine system.
  • For shielding the functions from reverse connection, disconnection through applying damage-resisting the battery
  • Having features like protecting the system from overcharging, when the battery is fully charged through applying the controller that automatically performs three-phase dump load for preventing the charging of battery.
  • Having feature of automatic recharging of battery: When the battery voltage goes down to 108% of the rated voltage, it thwarts three-phase dump load for automatic recharging of battery.

Technical Specification:

Model

SWS-13KW-120Vdc

Type

10KW-120Vdc

Wind power

10KW

Solar panel power

3KW

Battery

120Vdc

Function

Charge, control

Operating environment

Temperature -10-40, humidity 80%

PWM constant pressure voltage

>138Vdc

3-phase load voltage of the wind turbine

145+2Vdc

Recovery charging voltage of the wind turbine

135+2Vdc

Solar controller stop charging voltage

145+2Vdc

Solar restore charge voltage

135+2Vdc

Low-voltage of the battery

100+2Vdc

Display

LCD or LED

Self-provided connecting wire of the battery

>12mm2

PWM fuse

80A

Solar fuse

25A

Charging fuse

125A

Size of the controller

550x400x230 mm

Weight of the controller

21Kg

Size of the load

760x510x430 mm

Weight of the load

34 Kg

Above parameter only for reference:

  • Could be custom made to user specifications.
  • Could have solar power.
