10A 1000V DC Solar Fuse and Solar Fuse Holder
PV DC PVH-30 Fuse Holder
Rated Working Voltage
Max Power Dissipation
Operating State/Fault Indication
Indicator Light OFF/Indicator Light ON
Connection and Installation
Degree of Protection
Operating Temperature Range
For Mounting On
+20 ℃≤ 95%,+40℃≤50%
0.07kg Per pole

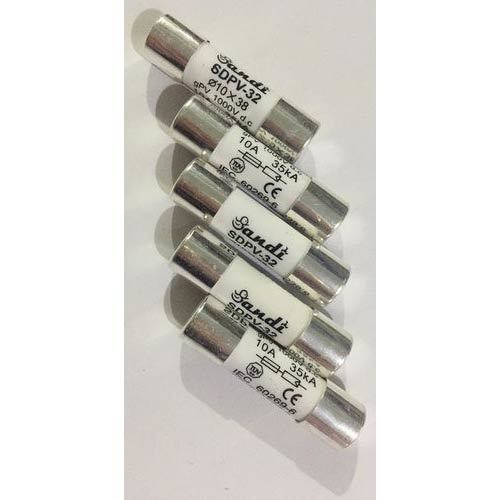

1000V 10x38 ceramic fuse details
1. Superior cycling withstand
PV fuses are tested to withstand cycling conditions associated with solar panel system operation and environmental influences.
2. 1000Vdc capacity
PV fuses are designed with a maximum 1000Vdc operating voltage based on typical solar panel systems with L/R of 1ms and below.
3. Globally accepted 10x38mm dimension
All PV fuse amp ratings are available with standard ferrule, bolt and versatile PCB mount.
4. Operating conditions:
1. Ambient air temperature: no more than 40C' and no less than -5C'
2. Altitudes: under 2Km
3. Atmospheric conditions: relative humidity no more than 50% when the maximum temperature is 40C'
4.Voltage: the maximum voltage of system no more than 110% of the rated voltage of the fuse.
Current ratings: 100 mA - 250 A
Sizes and voltage ratings:
|5 x 20 mm:||AC 250 V|
|6.35 x 32 mm:||AC 500 -1000 V|
|10 x 38 mm:||AC 600 - 1000 V|
|14 x 51 mm:||AC 500/600V - 690/700 V|
|22 x 58 mm:||AC 500/600 V - 690/700 V|
|27 x 60 mm:||AC DC 660 V - 1000 V|
