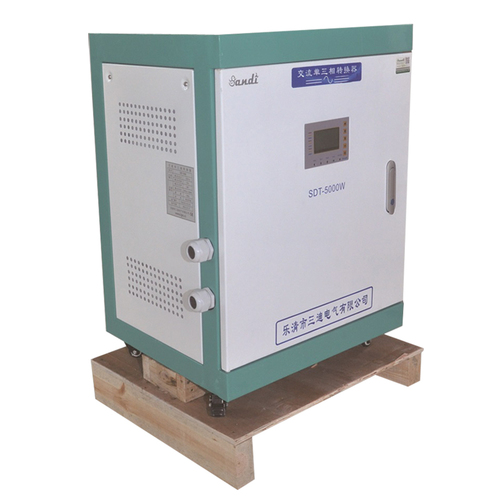

15KW power 220VAC into 380VAC three phase converter

15KW power 220VAC into 380VAC three phase converter
15KW power 220VAC into 380VAC three phase converter
Product Code : SDT-15KW
Brand Name : SANDI
Product Description

Single Phase to 3 Phase Converter

Our SDT series Power Phase converter is one of the most advanced AC to AC conversion products in the world which can convert ordinary single-phase power to industrial three-phase power. It has the main advantages of high quality sine wave AC output, microcomputer control, humanness design, high efficiency, low no-load loss and no pollution. The converter can supply AC power to all kinds of electric equipment, electric motors, pump, compressor, and other industrial power supply. Applicable to all types of load.

Technical Features:

  • The input voltage, output voltage, frequency and phase can be custom made.
  • Two kinds of start mode: Step Down Voltage Start and Variable Frequency Start. VFD is especially used for taking 3 phase inductive load more easily. This function is very convenient for users and also reduce frequency converter’s usage, which reduced the cost of equipment investment, easy to connect wires and control.
  • Output AC Power is suitable for all types of home appliances,electric tools, electric motors etc.
  • Using the fifth generation efficient IPM intelligent module from Japanese Mitsubishi, high efficiency and stable performance. It with powerful protection function for short circuit, over load, over temperature. Service life can reach 15-20 years.
  • Pure sine wave output. with good transient response, little harmonic distortion, higher conversion efficiency and stable output voltage features.
  • Adopted low frequency isolated transformer, safe and reliable, single phase input power is completely isolated from three phase output power, high conversion efficiency, high instantaneous power, stable performance and low load loss.
  • Adopts new magnetism material, largely reduce machine consumption, making efficiency maximum up to   98%.
  • Intelligent fan speed control system, low no-load loss
  • LCD display, high efficiency, easy installation
  • The output frequency 50Hz/60Hz can be set

Technical Data

Model

SDT-15KW

Isolation

Low Frequency Transformer

AC Input

Input rated voltage(VAC)

Single phase 220V

Input voltage range

110/120/220/230/240Vac optional

Input rated current(A)

68.2A

AC Output

Rated AC output power

15KW

AC output waveform

Pure sine wave

Phases

Three phase, 4 wires

Output rated voltage

380VAC ±3%

Output voltage range

220/240/380/400/415/440/480Vac optional

Output Frequency

50Hz/60Hz±0.05Hz

Output rated current(A)

22.76A (per phase)

Power Factor(PF)

0.95

Overload Ability

150%, 10s

Efficiency

>93%

Waveform distortion rate (THD)

<3%(Linear load)

Crest Factor (CF)

3:1

Display

LCD

Electrical insulation properties

2500Vac, 1 Minute

Ambient temperature

-15~+55℃

Using environment humidity

0~90%,No condensation

Protection

Input under voltage, overvoltage, output over-current, short circuit, overheating etc.

Structure

Cooling method

Fan-cooled

Noise

<40dB

Degree of protection

IP20(indoor)

Using altitude(m)

3000

Dimensions (mm)

600x700x1200mm

Weight (Kg)

162Kg

CE Standard

EN60950-1:2006+A11:2009, EN61000-6-4:2007+A1:2001, EN61000-6-2:2005, EN61000-3-12:2005, EN61000-3-11:2000
