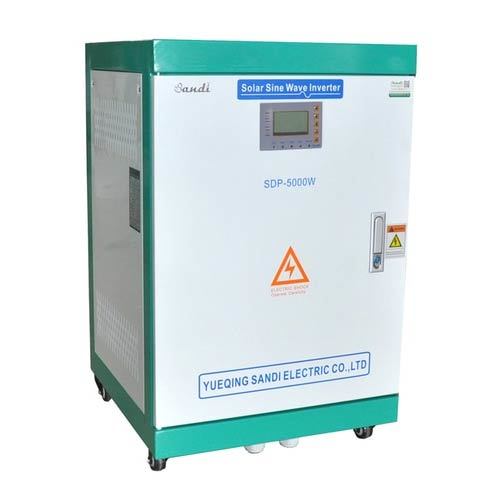

5kw 48v Inverter

5kw 48v Inverter
5kw 48v Inverter
Product Code : SDP-5KW
Brand Name : SANDI
Product Description

Parameters:

Model SDP-5KW
Isolation mode Low Frequency Transformer
DC Input Rated voltage (Vdc) 48V 96V 120V
Rated current(A) 104.16A 52A 42A
AC Output Rated output power 5KW
Output waveform Pure Sine Wave
Rated Voltage 220V±3% 110/220V or
120/240V
380VAC±3%
Phases Single phase Split phase 3 wires
 + ground
3 phase 4 wire
Rated current (A) 23A 23A(phase current) 7.6A (phase current)
Frequency 50Hz or 60Hz
Rated output voltage
 range (V)
110/120/220/230/240/380/400/415/440VAC optional
Phases Single / Two/ Three phase optional
Power Factor (PF) >0.95
Overload Ability 150%, 5 seconds
Efficiency >94%
Waveform distortion
rate (THD)
<3%(Linear load)
Dynamic Response
(0 to 100% load)
5%, ≤50ms
Display LCD
Running mode Working continuously
Electrical insulation
 properties
2000Vac, 1 Minute
AC Bypass Function  Optional
Solar Charge Controller built in Optional
AC to DC battery Charger built in Optional
RS485 remote monitoring Optional
Wide voltage input 100-850VDC(optional)  Off grid inverter can work without battery
Protection Function Protection Input reverse polarity, under voltage, overvoltage,
output over-current, short circuit, overheating etc.
Cooling method Fan-cooled
Short-circuit protection No automatic recovery, need to restart the machine
Working environment Noise ( 1 meter) ≤50dB
Degree of protection IP20(indoor)
Working Altitude (m) ≤2000
Working temperature -25~+55℃
relative humidity 0~90%,non-condensing
Mechanical dimension Depth* Width * Height 450x500x760mm
Weight (Kg) 75Kg
Certification European CE(EMC & LVD), SAA
