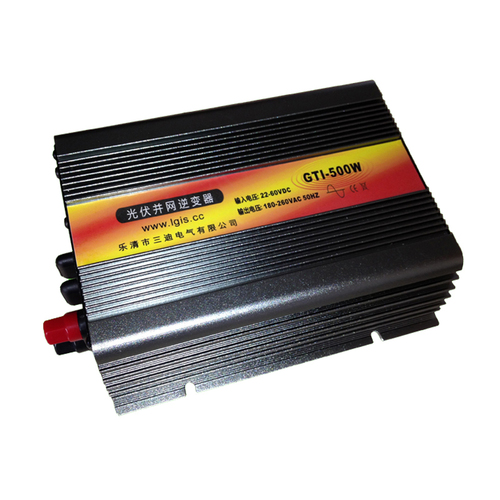

Micro Grid Tie Inverter

Micro Grid Tie Inverter
Micro Grid Tie Inverter
Product Code : SGTI-500W
Brand Name : SANDI
Product Description

600W Micro Grid Tie Inverter with 24/36/48V

Owing to our expertise in this domain, we have been able to offer our clients highly efficient Micro Grid Tie Inverter that is used for charging various solar devices. It is broadly appreciated for its high efficiency, compact design and low power consumption and is available in different technical specifications to meet the diverse needs of the clients. In order to fabricate this inverter, our professionals use optimum quality components and advanced technology. This Micro Grid Tie Inverter is available at rock bottom prices to our clients.

These Micro Grid Tie Inverters are easily installable and can also attach to the rack underneath of PV module. Easily transferable and takes low space while installing and also demands low voltage DC wire which is connected PV module to Micro-inverter, avoids the risk of high DC voltage. While distributing this inverted all the employees have use modularization design philosophy which ensures no error. Every single Micro-inverter is connected to the PV module in the array. This layout ensure an individual Maximum Peak Power Point Tracker (MPPT) and controls each PV module with maximum power availability. It is exported performance's utility grid, anyway the performance of the PV module in the array that might be get affected by he soiling, shading, mismatch or orientation, etc.

Using the fifth generation intelligent Power Module from Mitsubishi

  • It can help improvise the system efficiency to a higher level
  • It has a High conversion effectiveness
  • It has an highly developed technology for greatest power point tracking  (MPPT)
  • It has greater than 98% MPPT effectiveness
  • It has an wide input voltage series
  • It has very high dependability due to comprehensive safe guard function
  • It has influential communication interfaces
  • This inverter is based on the principle of simple operation and trouble free installation
  • It is uncomplicated to set and has a multilingual LCD display
  • It also has an adaptable protection / operation parameters

Technical descriptions:

DC Maximum Input Power

PDC.max=550W

DC Maximum Voltage

VpvDC28VDC

PV MPPT DC Voltage Range

Vpv 10.5V-28DC

Peak Inverter Efficiency

max>94%

MPPT Efficiency

99%

PV Maximum Input Current

Ipv.max20A

Reverse Polarity Protection

Diode

AC Rating Output Power

440W AC

AC Maximum Output Power

500W AC

AC Normal Voltage Range

80V-130;160-260VAC

AC Frequency

45-65Hz

Inverter Output Current Total Harmonic Distortion

THDIAC <5%

Phase shift

<1%

Island Effect Protection

VAC;f AC(UL1741)

Inverter Output Shorting Protection

Current Limiting

Standby Power Consumption

0

Nighttime Power Consumption

<1W

Ambient Temperature Range

-25-60

Ambient Humidity

0-100%(Indoor Type Design)

Electromagnetic Compatibility

EN50081.part1 EN50082.part1

Power Network Disturbance

EN61000-3-2

Power Network Detection

DIN VDE 126

Machine Dimension (LxWxH)

70x90x190
