Home » Products » Off Grid Inverter » Solar Inverter Without Battery

Solar Inverter Without Battery

Solar Inverter Without Battery
Solar Inverter Without Battery
Product Code : SDP-15KW
Brand Name : SANDI
Product Specifications
  • Frequency
  • 50/60 Hertz (HZ)
  • Sensor Type
  • current/voltage sensors
  • Output
  • 220-380VAC
  • Display
  • LCD
  • Current
  • 22.7 Ampere (amp)
  • Measuring Range
  • 100-800VDC Celsius (oC)
  • Product Type
  • DC to AC inverter
  • Operating Temperature
  • -25~+55 Celsius (oC)
  • Working Temperature
  • -30~+55 Celsius (oC)
  • Input
  • 100-400VDC or 200-600VDC or 400-800VDC
  • Pressure Type
  • DC to AC
  • Diameter
  • 550 Millimeter (mm)
  • Application
  • solar system
  • Supply Voltage
  • single/ split/3 phase Volt/Ohm (v/ohm)
  • Accuracy
  • 1 %
  • Dimension(L*W*H)
  • 550*550*860mm Millimeter (mm)
  • Weight
  • 140 Kilograms (kg)
  • Warranty
  • 2 years
Trade Information
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • FOB Port
  • Ningbo/Shanghai
  • Payment Terms
  • Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Paypal
  • Supply Ability
  • 6000pcs Per Month
  • Delivery Time
  • 7 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Packing of solar inverter without battery is standard export honeycomb cartoon with pallet or wooden box
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Certifications
  • CE(EMC&LVD), SAA(AS4777&AS3100), G83, G59, VDE ARN 4105, UL1741, CSA22.2, ISO9001
Product Description

* solar inverter without battery

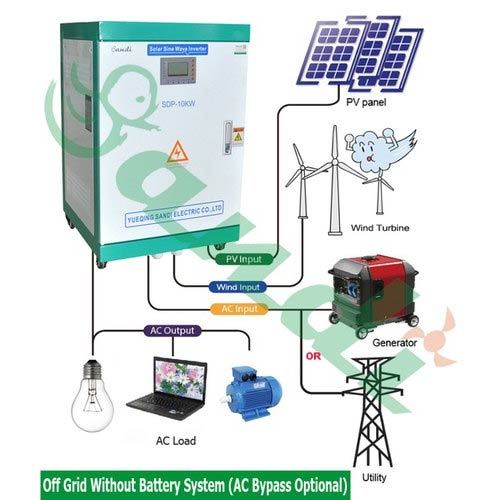

Off grid without battery system(AC bypass optional)

Off grid without battery system consist of solar panel array/wind turbine, wide voltage off grid inverter, etc. The solar panel or wind turbine convert solar/wind power to electrical energy, then wide voltage off grid inverter convert DC power into AC power to supply power for the AC load. Inverter also can add AC bypass input switch, when solar/wind power is insufficient, inverter will automatically switch to AC bypass input power(AC grid or diesel generator)to take load.

Wide voltage off grid inverter main features:

1. With MPPT(maximum power point tracking) function, priority to use solar/wind power, when solar/wind power is insufficient, seamlessly switch to AC grid power as backup, transfer time is 0ms.

2. Without battery and charge controller, reduce the cost a lot.

3. With high precision voltage stabilizing and filtering function, when AC grid power is ustable and power measure is poor, through inverter can output stable and clean pure sine wave, voltage transient response less than 40MS.

4. Unique anti-oscillation function, when there is no AC grid power input, inverter still can independently and stably running, wont happen turn on and off repeatedly these oscillation problems.

5. Resistance to the sand wind, moisture and salt, inverter have been tested on bad environment for long time, the service life can reach 15 years and more.

Solar Inverter without Battery Parameters:

Model

Rated Power



Recommended Rated Input Voltage

MPPT Input Voltage

Max. DC iput voltage

Output frequency

Rated output voltage

Inverter efficiency

SDP-5KW

5000W

300V

100-400V

550V

50/60HZ

120V/220V/380V/415V/440VAC

92%

SDP-10KW

10KW

500V

300-600V

850V

50/60HZ

120V/220V/380V/415V/440VAC

92%

SDP-20KW

20KW

500V

300-600V

850V

50/60HZ

120V/220V/380V/415V/440VAC

92%

SDP-30KW

30KW

600V

400-800V

850V

50/60HZ

120V/220V/380V/415V/440VAC

92%

SDP-40KW

40KW

600V

400-800V

850V

50/60HZ

220V/240V/380V/415V/440VAC

92%

SDP-50KW

50KW

600V

400-800V

850V

50/60HZ

220V/240V/380V/415V/440VAC

92%

SDP-80KW

80KW

600V

400-800V

850V

50/60HZ

220V/240V/380V/415V/440VAC

92%

SDP-100KW

100KW

600V

400-800V

850V

50/60HZ

220V/240V/380V/415V/440VAC

92%

SDP-150KW

150KW

600V

400-800V

850V

50/60HZ

380V/415V/440VAC

92%

SDP-200KW

200KW

600V

400-800V

850V

50/60HZ

380V/415V/440VAC

92%

SDP-300KW

300KW

600V

400-800V

850V

50/60HZ

380V/415V/440VAC

92%

 Packing&Service:

1. Accept MOQ(1pcs of solar inverter without battery is available) and OEM.

2. Packing of solar inverter without battery is standard export honeycomb carton with pallet or wooden box.

3. Delivery time of solar inverter without battery is 3-7 days.

4.Can be custom made.

5. Country of origin: China.
