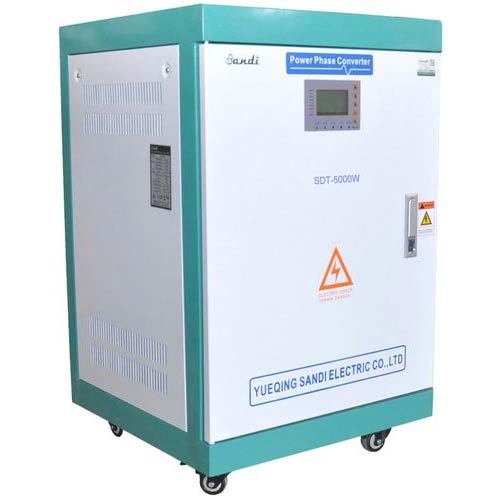

220V - 380 V Frequency Inverter

220V - 380 V Frequency Inverter
220V - 380 V Frequency Inverter
Product Code : SDT-4KW
Brand Name : SANDI
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price Range
  • 1200 - 1250 USD ($)
Product Specifications
  • Warranty
  • 2 years
Product Description
Introduction:

Sandi SDT series 220V to 380V frequency inverter 50hz to 60hz is one of the most advanced AC to AC and 50hz to 60hz frequency inverter in the world.

It has the main advantages of high quality sine wave AC output, high efficiency, low no-load loss, long service life, little fault rate, long service life, perfect protection and stronger capacity to drive inductive load.

The inverter can supply AC power to all kinds of electric equipment, electric motors, pump, compressor, and other industrial power supply. Applicable to all types of load.

Advantages:

  • The input voltage, output voltage, frequency and phase can be custom made.
  • Two kinds of start mode: Step Down Voltage Start and Variable Frequency Start.
  • Output AC Power is suitable for all types of home appliances,electric tools, electric motors etc.
  • Pure sine wave output. with good transient response, little harmonic distortion, higher conversion efficiency and stable output voltage features.
  • Intelligent fan speed control system, low no-load loss
  • LCD display, high efficiency, easy installation
  • The output frequency 50Hz/60Hz can be set
Parameters:

Model

SDT-4KW

Isolation

Low Frequency Transformer

AC Input

Input rated voltage(VAC)

Single phase 220V

Input voltage range

110/120/220/230/240Vac optional

Input rated current(A)

18.2A

AC Output

Rated AC output power

4KW

AC output waveform

Pure sine wave

Phases

Three phase, 4 wires

Output rated voltage

380VAC +3%

Output voltage range

220/240/380/400/415/440/480Vac optional

Output Frequency

50Hz/60Hz +0.05Hz

Output rated current(A)

6.06A (per phase)

Power Factor(PF)

0.95

Overload Ability

150%, 10s

Efficiency

>93%

Waveform distortion rate (THD)

<3%(Linear load)

Crest Factor (CF)

3:1

Display

LCD

Electrical insulation properties

2500Vac, 1 Minute

Ambient temperature

-15 +55

Using environment humidity

0-90%, No condensation

Protection

Input under voltage, over voltage, output over-current, short circuit, overheating etc.

Structure

Cooling method

Fan-cooled

Noise

<40dB

Degree of protection

IP20(indoor)

Using altitude(m)

3000

Dimensions (mm)

450x550x760mm

Weight (Kg)

75Kg

CE Standard

EN60950-1:2006+A11:2009, EN61000-6-4:2007+A1:2001, EN61000-6-2:2005, EN61000-3-12:2005, EN61000-3-11:2000



Trade Information
  • FOB Port
  • Ningbo/Shanghai
  • Payment Terms
  • Others, Paypal, Western Union, Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C)
  • Supply Ability
  • 1000 Per Month
  • Delivery Time
  • 4-5 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Packing of 220V - 380 V Frequency Inverter is strong honeycomb carton with pallet or wooden box
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • CE(EMC&LVD), SAA(AS4777&AS3100), G83, G59, VDE ARN 4105, UL1741, CSA22.2, ISO9001
