DC High Voltage Surge Protection SPD
4900.00 - 5500.00 USD ($)
Product Details:
- Protection Class IP20/IP40
- Insulation High-quality flame retardant housing
- Poles Number 2P (Two Poles)
- Dimension (L*W*H) 90mm x 36mm x 65mm (approx.)
- Product Type DC High Voltage Surge Protection SPD
- Rated Voltage 600V DC, 1000V DC, 1500V DC (models available)
- Phase Single Phase
- Click to view more
X
DC High Voltage Surge Protection SPD Price And Quantity
- 1 Unit
- 4900.00 - 5500.00 USD ($)
- 35 mm DIN rail
- Screw terminal
- 40kA
- 20kA
- 2 Poles
- -40C to +80C
- Mechanical indicator window (green/red)
- DC power systems, Solar PV systems, Industrial DC circuits
- <25ns
- <3.5kV
DC High Voltage Surge Protection SPD Product Specifications
- White/Light Grey
- Single Phase
- IP20/IP40
- DC High Voltage Surge Protection SPD
- High-quality flame retardant housing
- Approx. 150g
- 2P (Two Poles)
- 600V DC, 1000V DC, 1500V DC (models available)
- 90mm x 36mm x 65mm (approx.)
- 35 mm DIN rail
- Screw terminal
- 40kA
- 20kA
- 2 Poles
- -40C to +80C
- Mechanical indicator window (green/red)
- DC power systems, Solar PV systems, Industrial DC circuits
- <25ns
- <3.5kV
DC High Voltage Surge Protection SPD Trade Information
- 6000 Unit Per Month
- 7 Days
Product Description
Owing to our rich knowledge as well as professional workforce, we have achieved a noted position as a reliable manufacturer and exporter of DC High Voltage Surge Protection SPD. At our sound production unit, we manufacture this device using high quality materials and components. It is used for electric power supply networks, telephone networks, communication and automatic control buses. This device is connected in parallel on the power supply circuit of the loads that it has to protect. DC High Voltage Surge Protection SPD comes in different specifications as per client's requirements.
Features:
- Compact design
- Eliminates over voltage
- Easy to assemble

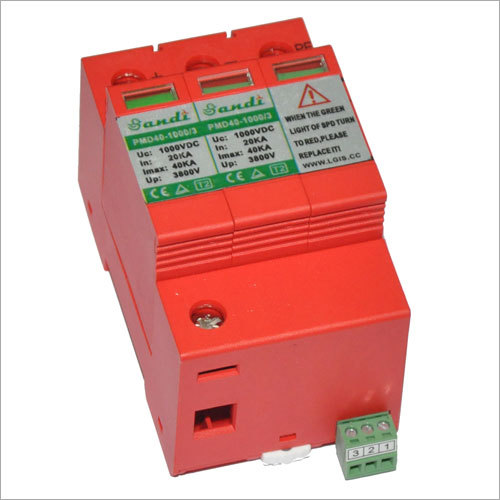

DC high voltage surge protection SPD
Introduction:
DC high voltage surge protection SPD are mainly used in the DC power supply lighting protection and over-voltage operation protection function.
Main features:
-
Use high quality varistor, with reliable high-quality assurance and stable performance
-
Modular design, can be charged plug, easy to test or replace
-
With remote alarm device, easy for remote monitoring
-
Adopt temperature control circuit technology, over-current and over-voltage double automatic protection circuit
-
With working and fault display, degradation status is clear at a glance
-
Fast response time, large discharge current capacity, low residual voltage
- Easy to install, maintain simple
Technical Data:
| Product Model | PMD40-1000/3 | ||
| Nominal Voltage | 1000VDC | 800VDC | 500VDC |
| Max Continuous Voltage | 1200VDC | ||
| Nominal Discharge Current(8/20s) | 20kA | ||
| Max Discharge Current Capacity(8/20s) | 40kA | ||
| Protection Level(8/20s) | 3300V | ||
| Cross-Sectional Area of Access Wire | 10mm2 | ||
| Dimension | 90 x 64 x 54 mm | ||
| Working Environment | Temperature-40+85,Relative Humidity 95%(25 ) | ||
| Altitude | <5000m | ||
Installation Method and Precautions:
- The power connecting wire use multi-strand copper wire and not less than 6mm2, ground wire use multi-strand copper wire and not less than 10mm2. Connecting wire should be short, straight, thick. Ground Resistance: R 4
- The front-end of DC high voltage surge protection SPD should be with appropriate fuse in series or be disconnected. Must disconnect power when install, prohibited hot-line operation.
- Insert Lightning protection module in place correctly after finished installation, check if working normally.
- When the DC high voltage surge protection SPD module fault display window indication red (remote communication terminal output an alarm signal), then means the SPD happen fault and should be replaced.
- DC high voltage surge protection SPD not need special maintenance, just need regularly check if connections is loose, status indication is normal.
Superior DC Surge Protection
Protect your solar PV arrays and DC circuits with cutting-edge surge protection technology. This SPD features a high discharge capacity, quick 25ns response, and robust insulation, ensuring that your valuable systems remain safeguarded against voltage spikes and lightning surges.
Easy Installation & Monitoring
Featuring a 35 mm DIN rail mounting design and screw terminal connections, installation is quick and reliable. The built-in mechanical indicator window offers clear, at-a-glance fault status, reducing maintenance time and enhancing system reliability.
Versatile and Durable
Available in multiple rated voltages for broad compatibility, this SPD withstands extreme temperatures and harsh industrial conditions. Its IP20/IP40-rated flame retardant housing ensures safety without sacrificing performance.
FAQs of DC High Voltage Surge Protection SPD:
Q: How does the DC High Voltage Surge Protection SPD function in solar PV systems?
A: The SPD detects and diverts transient surge voltages in DC power lines, commonly caused by lightning or switching events, thereby protecting sensitive equipment in solar photovoltaic systems from damage.Q: What is the installation process for this surge protection device?
A: Install the SPD directly onto a 35 mm DIN rail. Use the screw terminals to secure wiring, and ensure correct connection according to the SPDs rated voltage. Monitor the mechanical indicator window for any status changes.Q: Where should this SPD be placed for optimum performance?
A: The SPD should be installed as close as possible to the equipment or main DC distribution panel to offer immediate protection. Placement near entry points of DC power, such as inverter inputs and combiner boxes in solar PV systems, ensures optimum efficiency.Q: What are the benefits of using a mechanical indicator window on this SPD?
A: The mechanical indicator window provides a quick and clear visual status (green for normal, red for fault), allowing for fast maintenance responses and minimizing system downtime.Q: When is it necessary to replace the surge protection device?
A: Replacement is required when the indicator window switches to red, signaling the SPD has reached its end of lifespan or has operated during a major surge event, to maintain continuous protection.Q: What applications are suitable for this SPD model?
A: It is ideal for DC power systems, solar PV setups, and industrial DC circuits, particularly in environments with voltage ratings of up to 1500V DC and subject to harsh temperature variations.Tell us about your requirement
