Solar Inverter With Battery Charger

Solar Inverter With Battery Charger

1800.00 - 2000.00 USD ($)

Product Details:

  • Frequency 50 or 60 Hertz (HZ)
  • Output single / split/ three phase
  • Sensor Type voltage/current sensor
  • Display LCD
  • Product Type DC to AC inverter
  • Operating Temperature -25~+60 Celsius (oC)
  • Pressure Type DC to AC
  • Supply Ability : 1000 Piece Per Month
  • Click to view more

Price And Quantity

  • 1800.00 - 2000.00 USD ($)
  • 1 Piece

Product Specifications

  • voltage/current sensor
  • single / split/ three phase
  • 50 or 60 Hertz (HZ)
  • single / split/ three phase Volt (v)
  • DC to AC inverter
  • 2 years
  • DC to AC
  • -25~+60 Celsius (oC)
  • LCD

Trade Information

  • Ningbo/Shanghai
  • Paypal, Western Union, Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C)
  • 1000 Piece Per Month
  • 4-5 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Packing of Solar Inverter With Battery Charger is strong honeycomb carton with pallet or wooden box
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India
  • CE(EMC&LVD), SAA(AS4777&AS3100), G83, G59, VDE ARN 4105, UL1741, CSA22.2, ISO9001

Product Description

In this field we are recognized amongst trusted manufacturers and suppliers of Solar Inverter With Battery Charger (Bypass). Manufactured using high quality materials and components, this inverter is highly demanded among clients. This inverter is designed for high efficiency, maximum flexibility and easy installation. It is the ideal choice for medium and large PV plants. Solar Inverter With Battery Charger(Bypass) combines sophisticated digital control technology with efficient power conversion architecture. We offer this inverter at affordable prices.

We are presenting Solar Inverter With Battery Charger, which is build under the sync of authorized standards. Our inverter embraces intelligent technology, modularized functions, simple structure design and easy to maintain. Apart from this, due to its environment friendly design, we are getting positive feedbacks from customers from around the world. In this Solar Inverter With Battery Charger, protection against input reverses polarity, under and overvoltage, short circuit, overheating etc are provided for keeping all the electronic items safe and secure.


  • Designed to work with power optimizers
  • Longer working life
  • Wide input voltage

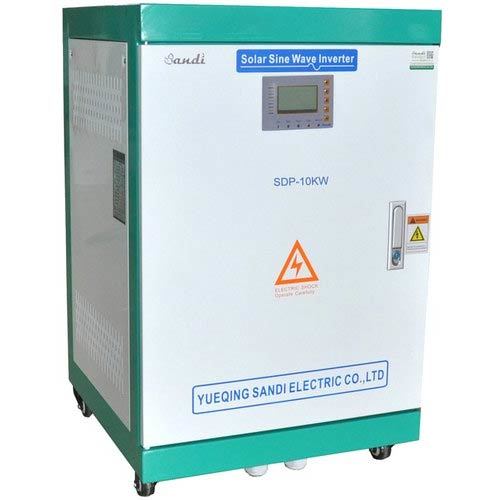

Model SDP-10KW
Isolation mode Low Frequency Transformer
DC Input Rated voltage (Vdc) 48V 96V 192V 240V
Rated current(A) 208.3A 104.16A 52A 42A
AC Output Rated output power 10KW
Output waveform Pure Sine Wave
Rated Voltage 220VAC +3% 110/220VAC +3% 380VAC+3%
Phases Single phase Split phase 3 wires
 + ground
3 phase 4 wire
Rated current (A) 45.5A 45.45A 15A (phase current)
Frequency 50Hz or 60Hz
Rated output voltage
 range (V)
110/120/220/230/240/380/400/415/440VAC optional
Phases Single / Two/ Three phase optional
Power Factor (PF) >0.95
Overload Ability 150%, 5 seconds
Efficiency >94%
Waveform distortion
 rate (THD)
<3%(Linear load)
Dynamic Response
(0 to 100% load)
5%, 50ms
Display LCD
Running mode Working continuously
Electrical insulation
2000Vac, 1 Minute
Protection Function Protection Input reverse polarity, under voltage, overvoltage, output over-current,  short circuit, overheating etc.
Cooling method Fan-cooled
Short-circuit protection No automatic recovery, need to restart the machine
Working environment Noise ( 1 meter) 50dB
Degree of protection IP20(indoor)
Working Altitude (m) 2000
Working temperature -25~+55
relative humidity 0~90%,non-condensing
Mechanical dimension Depth* Width * Height 540x540x760mm
Weight (Kg) 110Kg
Certification European CE(EMC & LVD), SAA


* Tips on getting accurate quotes. Please include product name, order quantity, usage, special requests if any in your inquiry.
