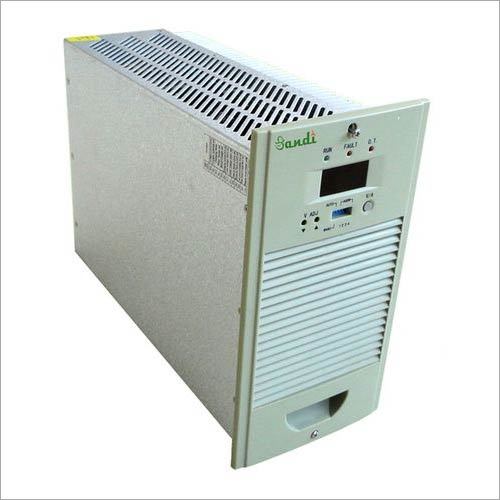

Three Phase 380V AC/DC Battery Charger

Module Code

230D05ZZ - 3

230D07ZZ - 3

230D10ZZ - 3

230D20ZZ - 3

230D20NZ - 3

230D30NZ - 3

230D40NZ - 3

rated output current(A)

5

10

10

20

20

30

40

power(KW)

1.5

2.1

3

6

6

9

12

weight(kg)

5.2

9

9

16

10.5

19

19

cooling type

natural cooling

fan cooling

Internal radiator temperature rise

30

20

range of input voltage
AC(VAC)

min

304

Typical value

380

max

456

range of the output
voltage(VDC)

min

190

Typical value

220

max

300

Voltage Stabilizing accuracy

+0.5%

Current Stabilizing accuracy

+1%

PFC

0.93

Efficiency

95%

noise(dB)

<50

Storage temperature(oC)

min

-40

Typical value

25

max

60

working temperature(oC)

min

-10

Typical value

25

max

40

Unbalance rate of load sharing

+3%

Soft start time(s)

3~8

Ripple coefficient

0.2%

Load grade

Continuous working with Grade I(100%) rating output current

Automatic current limiting

The output current does not increase infinitely. When output current is over
threshold, there will be limited constant current output. The maximum output
current of is limited to 105% of the rated output current.

Output over-voltage protection

No output, threshold (320 + 5VDC), self recoverable

output short circuit protection

When short circuit, the module will protect itself from broken. Self recoverable
