10KW single phase isolation transformer

4900.00 - 5500.00 USD ($)

Get a Price/Quote

Product Details:

Operating Temperature -25C to +45C
Load Loss 120W
Rated Voltage Input: 220V/230V AC, Output: 220V/230V AC
Low Voltage 230V
Standard IEC 60076, IS 2026
Cooling Type Air-cooled (AN)
Coil Material 99.9% pure copper
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

10KW single phase isolation transformer Price And Quantity

Minimum Order Quantity 1 Unit
Price Range 4900.00 - 5500.00 USD ($)

Dielectric Strength 2500V AC/min
Enclosure Type Ventilated, powder coated steel
Service Life 20 years
Mounting Type Floor mount
Terminal Connection Screw terminal
Insulation Class Class F or H
Isolation Resistance >1000 M
Relative Humidity 95% (non-condensing)
Protection Degree IP23
Impedance 4-6%
Noise Level <45dB @ 1 meter

10KW single phase isolation transformer Product Specifications

Usage Electrical isolation and voltage transformation
Rated Voltage Input: 220V/230V AC, Output: 220V/230V AC
Standard IEC 60076, IS 2026
Coil Material 99.9% pure copper
Cooling Type Air-cooled (AN)
Product Type Isolation Transformer
Power Scope 10KW
Low Voltage 230V
Efficiency 98%
Capacity 10KW
Frequency (MHz) 50/60 Hz
High Voltage 230V
Dimension (L*W*H) Approx. 460 x 360 x 370 mm
Voltage Booster Type Step-up/Step-down optional
Weight Approx. 65 kg
Phase Single Phase
Operating Temperature -25C to +45C
Output AC
Load Loss 120W
Coil Structure Toroidal or laminated core
Material Copper winding, silicon steel core
Coil Number Two (Primary & Secondary)

Dielectric Strength 2500V AC/min
Enclosure Type Ventilated, powder coated steel
Service Life 20 years
Mounting Type Floor mount
Terminal Connection Screw terminal
Insulation Class Class F or H
Isolation Resistance >1000 M
Relative Humidity 95% (non-condensing)
Protection Degree IP23
Impedance 4-6%
Noise Level <45dB @ 1 meter

10KW single phase isolation transformer Trade Information

FOB Port Ningbo/Shanghai
Supply Ability 6000 Unit Per Month
Delivery Time 7 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Packing of 10KW single phase isolation transformer is standard export honeycomb carton with pallet or wooden box.
Main Export Market(s) South America, Australia, North America, Eastern Europe, Western Europe, Central America, Middle East, Asia, Africa
Main Domestic Market All India
Certifications CE

Product Description

10KW single phase isolation transformer

Single-Phase and Three phase Isolation Transformer
We're MANUFACTURER and specialize in electrical field for several years,also export products with good quality and right price in China. We can customize according to your requirements.
SANDI transformer accept all kinds of input and output voltage, and all kinds of power capacities,
Dry-type, Isolation, Control, Power, CE certification
General (IT series three-phase dry type transformer)
IT series single - phase and three - phase dry type transformer adopts high quality material and advanced technology , it has advantages of damp - proof and convenient maintenance, it can be applied to such power transmission and distribution places like underground railway , high building, airport, station, wharf, enterprise, tunnel, etc. It is mainly used in power supply occasions of AC 50 60Hz and voltage less than 500V. All the input and output voltage , connection group and capacity of tapped winding can be designed and produced according to users' requirements.

Working conditions (IT series three-phase dry type transformer)

Ambient temperature: -15 C+40C
Altitude: <1000m
Relative humidity: <90%
Environment exists without gas, steam, chemical deposition, dust or dirt that will affect transformer's insulation seriously, also corrosive medium is not allowed.
If any special working conditions that are not in line with the above stipulations, user shall negotiate with us.

Main technical characters (IT series and three-phase dry type transformer)

Input voltage: rated voltage 10%
Output voltage: rated voltage 1% (no load)
Efficiency: 96%
Waveform distortion: no additional waveform distortion
Function: indication of input voltage, output voltage and current.
Protection: over current protection
Can operate itself without anybody attending for a long term
Insulation resistance: 50M
Electric strength: no breakdown or flash over phenomenon under power frequency sine voltage of 2000V for 1min
Overload capability: for 1min under two times of rated current
Power: 5KW 250KW (or lager range)

We can customize various types of transformers.

Durable and Efficient Performance

This 10KW transformer is designed for longevity and energy efficiency. Its use of 99.9% pure copper windings and premium silicon steel core supports a high efficiency of 98%, reducing losses and extending service life to over 20 years. The air-cooled system and ventilated enclosure help maintain optimal operating conditions, even in high-humidity environments up to 95% relative humidity.

Flexible Installation and Operation

With its user-friendly screw terminals and floor-mount design, the transformer is easy to install and maintain. The ventilated, powder-coated steel enclosure ensures solid protection (IP23 rating) against dust and accidental contact. It is engineered for quiet operation and can be used in various indoor electrical applications, supporting both step-up and step-down voltage requirements.

Reliable Safety Standards

Manufactured to comply with IEC 60076 and IS 2026 standards, the transformer features a high insulation resistance (>1000 M) and robust dielectric strength (2500V AC/min). These attributes make it safe for continuous operation in demanding environments. The low noise level (<45dB at 1 meter) also makes it suitable for settings that require minimal acoustic interference.

FAQs of 10KW single phase isolation transformer:

Q: How is the 10KW single-phase isolation transformer typically installed?

A: This transformer is designed for floor mounting and features screw terminal connections for both primary and secondary coils, enabling a straightforward and secure setup.

Q: What are the main benefits of using this isolation transformer in electrical systems?

A: The transformer provides outstanding electrical isolation, improved voltage regulation, and excellent protection for sensitive equipment. Its high efficiency minimizes energy losses, and long service life ensures dependable operation.

Q: When should I use this transformer for my application?

A: This transformer is ideal when electrical isolation, voltage transformation, or protection from surges and noise is crucial. It is suitable for environments with relative humidity up to 95% and temperatures ranging from -25C to +45C.

Q: Where is this transformer commonly used?

A: It is widely used in commercial, industrial, and institutional settings to provide safe, stable voltage supply. Typical applications include manufacturing plants, automation systems, and sensitive laboratory equipment.

Q: What is the process for voltage transformation in this transformer?

A: The transformer features two windings (primary and secondary), with the voltage stepped up or down as required. It supports both 220V and 230V AC for input and output, operating at 50/60Hz frequencies.

Q: How does the transformer maintain safety and performance in harsh environments?

A: With an IP23-rated, ventilated enclosure and powder-coated steel construction, the transformer is protected from dust and accidental contact. High insulation resistance and strong dielectric strength guard against electrical faults, while air-cooling keeps temperatures in check.

Q: What standards does this transformer comply with?

A: The product meets IEC 60076 and IS 2026 international and Indian standards for safety and performance, ensuring reliable quality for distributors, exporters, and users throughout India.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Isolation Transformer' category

40KW Boosting transformer with single phase 230V to 360VAC Price Range : 4900.00 - 5500.00 USD ($) Minimum Order Quantity : 1 Product Type : Isolation Transformer Efficiency : Up to 98% Weight : Approx. 170 kg Phase : Single Phase Operating Temperature : 10C to +50C Output : 360 VAC Coil Structure : Other, Toroidal or Layer wound Load Loss : 700 W Material : Highgrade copper windings and laminated silicon steel core Coil Number : Other, 2 (Primary and Secondary) Usage : Boosting voltage from 230V to 360VAC for industrial and commercial applications Rated Voltage : Input: 230V AC, Output: 360V AC Coil Material : Other , Copper Standard : IS 2026 / IEC 60076 Cooling Type : Air/Oil Cooled Power Scope : 40 KW Low Voltage : 230V AC Frequency (MHz) : 50/60 Hz Capacity : 40 KW High Voltage : 360V AC Dimension (L*W*H) : 1000 x 550 x 850 mm (approximate) Voltage Booster Type : Other, Stepup Booster Transformer

Send Inquiry

30KW Isolation transformer with three phase 220V to 380V Price Range : 4900.00 - 5500.00 USD ($) Minimum Order Quantity : 1 Product Type : Isolation Transformer Efficiency : 98% Weight : 150 kg (approx) Phase : Three Phase Operating Temperature : 20C to +45C Output : 380V AC three phase Coil Structure : Toroidal Load Loss : 0.8% of rated capacity Material : Copper and silicon steel core Coil Number : Other, 2 (Primary and Secondary) Usage : Suitable for electrical isolation, voltage conversion, and power supply applications in industrial environments. Rated Voltage : Primary: 220V AC three phase / Secondary: 380V AC three phase Coil Material : Other , High purity copper Standard : IEC 60076 / IS 2026 Cooling Type : Air cooled Power Scope : 30KW Low Voltage : 220V AC Frequency (MHz) : 50/60 Hz Capacity : 30KW High Voltage : 380V AC Dimension (L*W*H) : 700mm x 520mm x 930mm Voltage Booster Type : Other, Stepup transformer

Send Inquiry

10KW Single Phase Isolation Transformer Price Range : 4900.00 - 5500.00 USD ($) Minimum Order Quantity : 1 Product Type : Isolation Transformer Efficiency : 98% Weight : 70 kg Phase : Single Phase Operating Temperature : 15C to +45C Output : 220V Coil Structure : Toroidal Load Loss : 800 W Material : Highgrade Silicon Steel Core, Copper Windings Coil Number : Other, 2 Usage : Electrical Isolation, Safety, Voltage Transformation for Sensitive Equipment Rated Voltage : 220V/230V Coil Material : Other , Copper Standard : IS 2026 Cooling Type : Air Cooled Power Scope : 10KW Low Voltage : 220V Frequency (MHz) : 50/60 Hz Capacity : 10 KW High Voltage : 230V Dimension (L*W*H) : 480 x 340 x 330 mm Voltage Booster Type : Other, Stepup/Stepdown (on request)

Send Inquiry

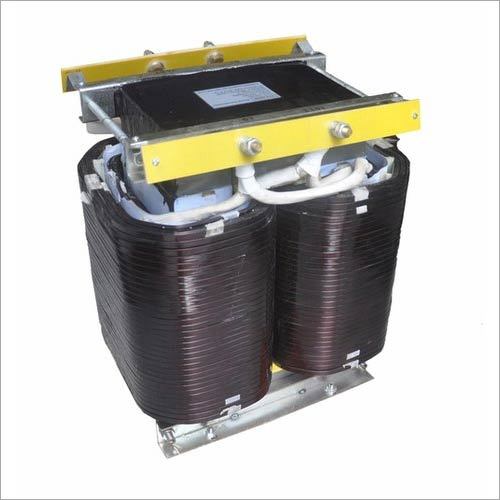

Step-up Transformer with single phase and three phase Price Range : 4900.00 - 5500.00 USD ($) Minimum Order Quantity : 1 Product Type : Other, Stepup Transformer Efficiency : Up to 98% Weight : Varies by rating (starting from 50 kg for lower capacities) Phase : Other, Single Phase / Three Phase Operating Temperature : 25C to +50C Output : Steppedup AC voltage (customizable per requirement) Coil Structure : Other, Toroidal or laminated core Load Loss : As per IEC/IS standards, generally below 1% of rating Material : Highgrade silicon steel core with copper and/or aluminum windings Coil Number : Other, 2 or 3 coils, based on phase Usage : Voltage boosting and voltage regulation applications in electrical distribution and industrial power systems Rated Voltage : Primary: 220V, 400V, 415V / Secondary: Up to 11kV or as specified Coil Material : Other , Electrolytic copper or aluminum, as per requirement Standard : IS 2026, IEC 60076, BIS certified Cooling Type : ONAN (Oil Natural Air Natural) / AN (Air Natural) Power Scope : From 10 kVA up to 5000 kVA (custom options available) Low Voltage : 220V, 400V, 415V or as specified Frequency (MHz) : 50/60 Hz Capacity : 10 kVA 5000 kVA High Voltage : Up to 11kV (customizable as per design) Dimension (L*W*H) : Custom sizes based on rating, typical: 800mm x 600mm x 1200mm Voltage Booster Type : Other, Electromagnetic inductive stepup
