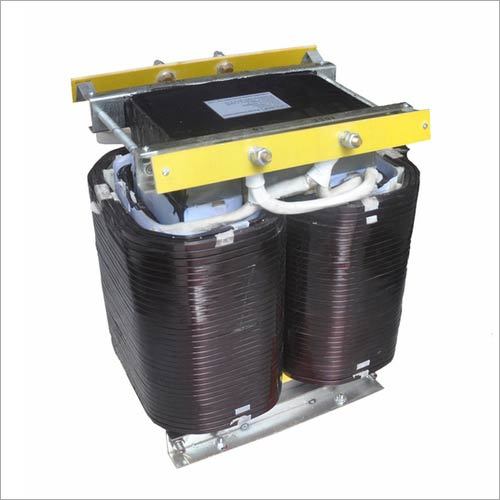

40KW Boosting transformer with single phase 230V to 360VAC
4900.00 - 5500.00 USD ($)
Product Details:
- Load Loss 700 W
- Operating Temperature -10C to +50C
- Coil Material Copper
- Standard IS 2026 / IEC 60076
- Dimension (L*W*H) 1000 x 550 x 850 mm (approximate)
- Rated Voltage Input: 230V AC, Output: 360V AC
- High Voltage 360V AC
- Click to view more
X
40KW Boosting transformer with single phase 230V to 360VAC Price And Quantity
- 1 Unit
- 4900.00 - 5500.00 USD ($)
- < 60 dB
- 2.5 kV for 1 minute
- Series / Parallel as per requirement
- IP23 or higher
- 95% RH (non-condensing)
- 3%
- 120% for 1 minute
- Floor Mounted
- Lug/Busbar
- Class F or H
40KW Boosting transformer with single phase 230V to 360VAC Product Specifications
- Air/Oil Cooled
- 360 VAC
- 40 KW
- 2 (Primary and Secondary)
- Step-up Booster Transformer
- 230V AC
- Boosting voltage from 230V to 360VAC for industrial and commercial applications
- Toroidal or Layer wound
- 40 KW
- 360V AC
- Approx. 170 kg
- Isolation Transformer
- Input: 230V AC, Output: 360V AC
- High-grade copper windings and laminated silicon steel core
- 1000 x 550 x 850 mm (approximate)
- 50/60 Hz
- Single Phase
- IS 2026 / IEC 60076
- Copper
- -10C to +50C
- 700 W
- Up to 98%
- < 60 dB
- 2.5 kV for 1 minute
- Series / Parallel as per requirement
- IP23 or higher
- 95% RH (non-condensing)
- 3%
- 120% for 1 minute
- Floor Mounted
- Lug/Busbar
- Class F or H
40KW Boosting transformer with single phase 230V to 360VAC Trade Information
- Ningbo/Shanghai
- 6000 Unit Per Month
- 7 Days
- Yes
- Contact us for information regarding our sample policy
- Packing of 40KW Boosting transformer with single phase 230V to 360VAC is standard export honeycomb carton with pallet or wooden box.
- Australia, North America, South America, Eastern Europe, Middle East, Africa, Western Europe, Central America, Asia
- All India
- CE
Product Description
Single-Phase and Three phase Boosting Transformer
We're MANUFACTURER and specialize in electrical field for several years,also export products with good quality and right price in China. We can customize according to your requirements.
We're MANUFACTURER and specialize in electrical field for several years,also export products with good quality and right price in China. We can customize according to your requirements.
General (BT series boosting transformer)
IT series single - phase and three - phase boosting transformer adopts high quality material and advanced technology , it has advantages of damp - proof and convenient maintenance, it can be applied to such power transmission and distribution places like underground railway , high building, airport, station, wharf, enterprise, tunnel, etc. It is mainly used in power supply occasions of AC 50/60Hz and voltage less than 1000V. All the input and output voltage , connection group and capacity of tapped winding can be designed and produced according to users requirements.
Working conditions (BT series single phase and three-phase boosting transformer)
- Ambient temperature: -15C+40C
- Altitude: <1000m
- Relative humidity: <90%
- Environment exists without gas, steam, chemical deposition, dust or dirt that will affect transformer insulation seriously, also explosive or corrosive medium is not allowed.
- If any special working conditions that are not in line with the above stipulations, user shall negotiate with us.
Main technical characters (BT series single phase and three-phase boosting transformer)
- Input voltage: rated voltage 10%
- Output voltage: rated voltage +1% (no load)
- Efficiency: 96%
- Waveform distortion: no additional waveform distortion
- Function: indication of input voltage, output voltage and current.
- Protection: over-current protection
- Can operate itself without anybody attending for a long term
- Insulation resistance: 50M
- Electric strength: no breakdown or flashover phenomenon under power frequency sine voltage of 2000V for 1min
- Overload capability: for 1min under two times of rated current
- Power: 5KW - 250KW (or lager range)
Versatile Voltage Boosting
This transformer is specifically intended for applications requiring a step-up from 230V to 360V AC. Its series or parallel winding connections adapt to various power needs, making it ideal for industrial and commercial installations where consistent higher voltage is critical.
Durable Construction & Reliable Performance
Constructed with top-quality copper and silicon steel, the unit withstands ambient humidity up to 95% RH and temperatures ranging from -10C to +50C. It offers overload protection and houses its components in an IP23-rated enclosure, ensuring endurance and safety.
Efficient Operation & Low Noise
Operating at a maximum efficiency of 98% and a noise level below 60 dB, the transformer maintains energy savings and workplace comfort. Air or oil cooling options, combined with strong dielectric strength, assure optimal performance and service longevity.
FAQs of 40KW Boosting transformer with single phase 230V to 360VAC:
Q: How is the 40KW Boosting Transformer installed?
A: The transformer is designed for floor mounting, ensuring stable installation. Its compact dimensions (1000 x 550 x 850 mm) enable easy positioning in industrial or commercial spaces. For connection, lug or busbar terminals facilitate secure and flexible wiring.Q: What is the recommended usage for this transformer?
A: This step-up booster transformer is ideal for boosting voltage from 230V to 360V AC in industrial processes, commercial buildings, or any application requiring consistent higher voltage supply within a single-phase electrical system.Q: When should the winding connection be set to series or parallel?
A: Winding connections can be configured for series or parallel operation depending on application requirements like desired output current and voltage stability. Increase output voltage by series connection or optimize current capacities through parallel arrangement as per need.Q: Where can the transformer be operated and distributed?
A: This product is suitable for use in India and can be exported internationally. Supported by local distributors, manufacturers, and traders, the transformer is accessible for installation in varied industrial and commercial settings.Q: What benefits does the transformer provide over alternative solutions?
A: The transformers high efficiency, robust construction, and compliance with IS 2026 / IEC 60076 standards offer reliable voltage boosting, energy savings, and reduced operating noise, making it superior for demanding applications.Q: How does the transformer handle overload situations?
A: It safely supports short-term overloads up to 120% of its rated capacity for one minute. This feature ensures system reliability and protects the transformer during peak load conditions without compromising performance.Q: What process is involved in maintaining optimal performance?
A: Routine inspections for cleanliness, secure terminals, and cooling system efficiency (either air or oil) are recommended. Adhering to standard operating conditions (temperature, humidity, and load limits) helps sustain long-term efficiency and regulation.Tell us about your requirement
